Double Sided Hexagonal V-Belts
Features

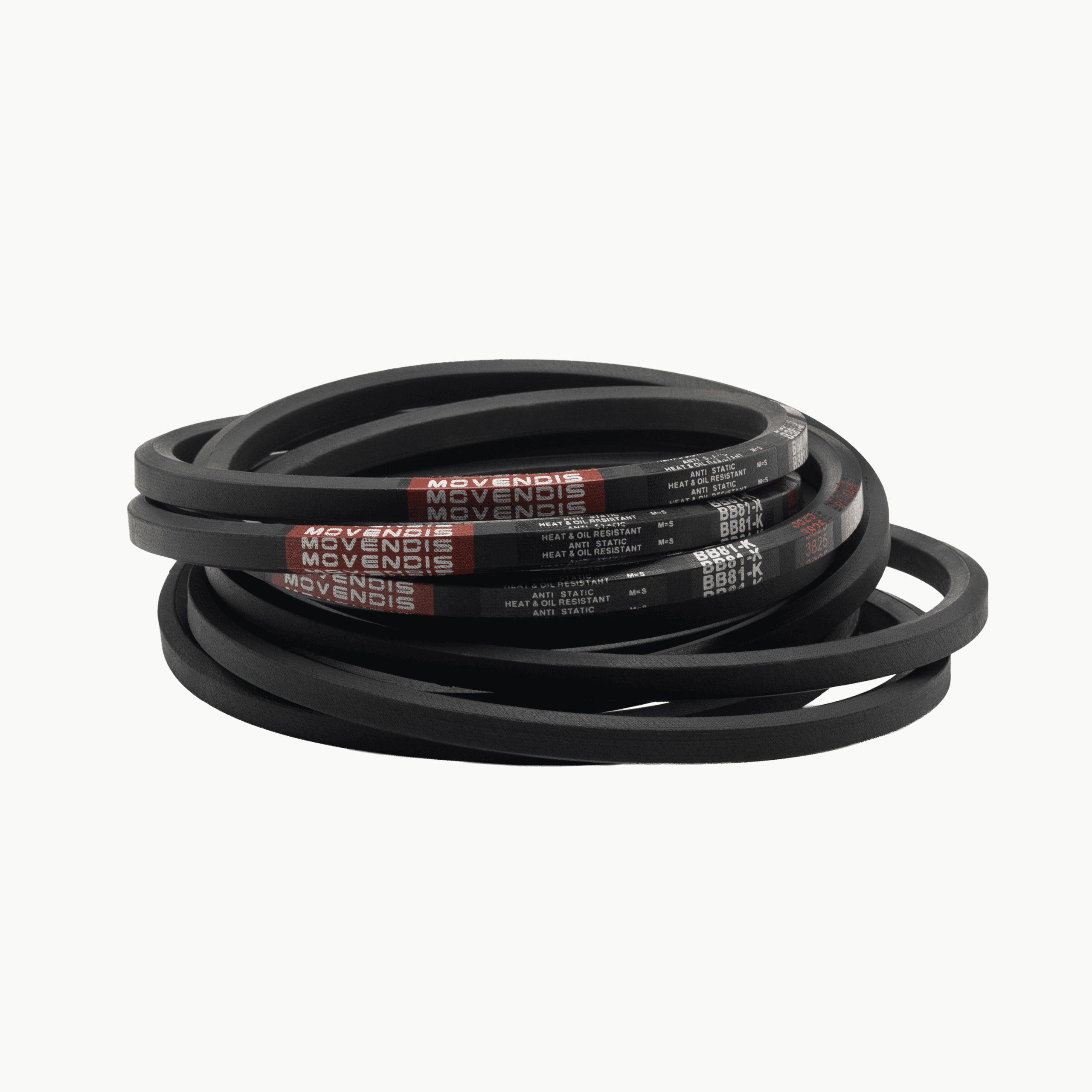

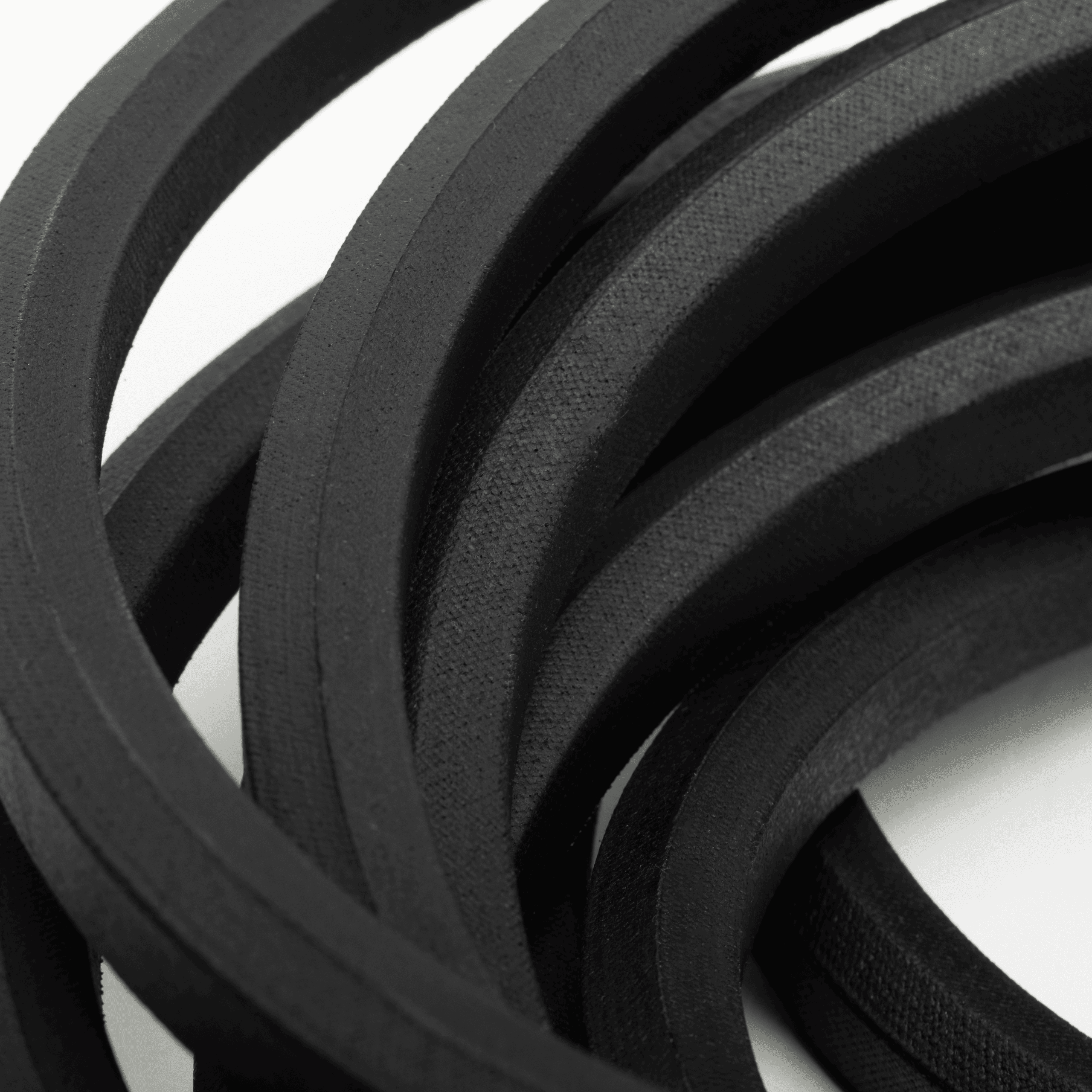

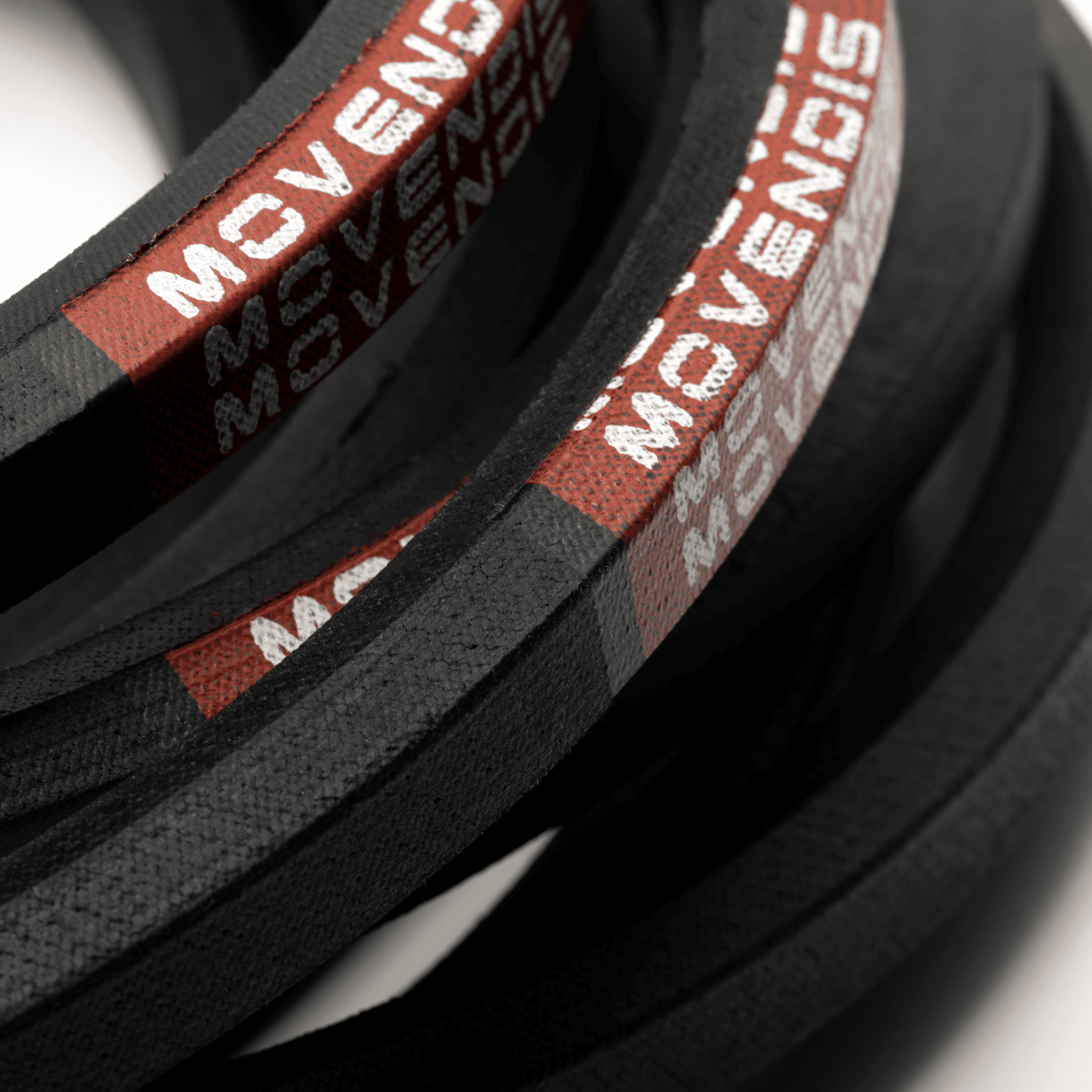

Movendis Performance Hexagonal – Double-Sided V-Belt
Dual power. Full flexibility. Maximum reliability.
The Movendis Performance Hexagonal belt is a double-sided V-belt specifically designed for serpentine drives and alternating bending applications. Engineered with a centrally positioned low-stretch Stiff polyester tensile cord, it delivers exceptional flexibility in both directions of rotation, making it ideal for multi-pulley systems operating on a single plane.
The fiber-reinforced rubber base ensures strong longitudinal force support and allows for efficient power transmission on both top and bottom surfaces of the belt. Its robust structure combines rigidity and adaptability, ensuring smooth, consistent operation even under complex drive configurations.
KEY FEATURES & ADVANTAGES
• Power transmission in both drive directions
• Centrally placed Stiff polyester cord for high flexibility and low stretch, +30% power vs. conventional hexagonal belts
• Optional aramid cord for high-tension applications
• Excellent for serpentine layouts and reverse-drive mechanisms
• Electrically conductive, meets ISO 1813 antistatic standards
• High transverse strength for reliable multi-pulley engagement
• Moderate resistance to dust and environmental wear
• Temperature range: -35°C to +85°C, peak to 100°C
• Compatible with DIN 7722 specifications
• Quiet operation and smooth performance, even in high-speed settings
TYPICAL APPLICATIONS
• Agricultural machinery with reversing pulley systems
• Serpentine drives in industrial equipment
• Multi-shaft mechanical engineering systems
• Fan and pump assemblies requiring bidirectional rotation
Movendis Performance Hexagonal
The belt of choice when direction, flexibility, and strength must work hand in hand.
Product Code
• Includes AA, BB, CC
