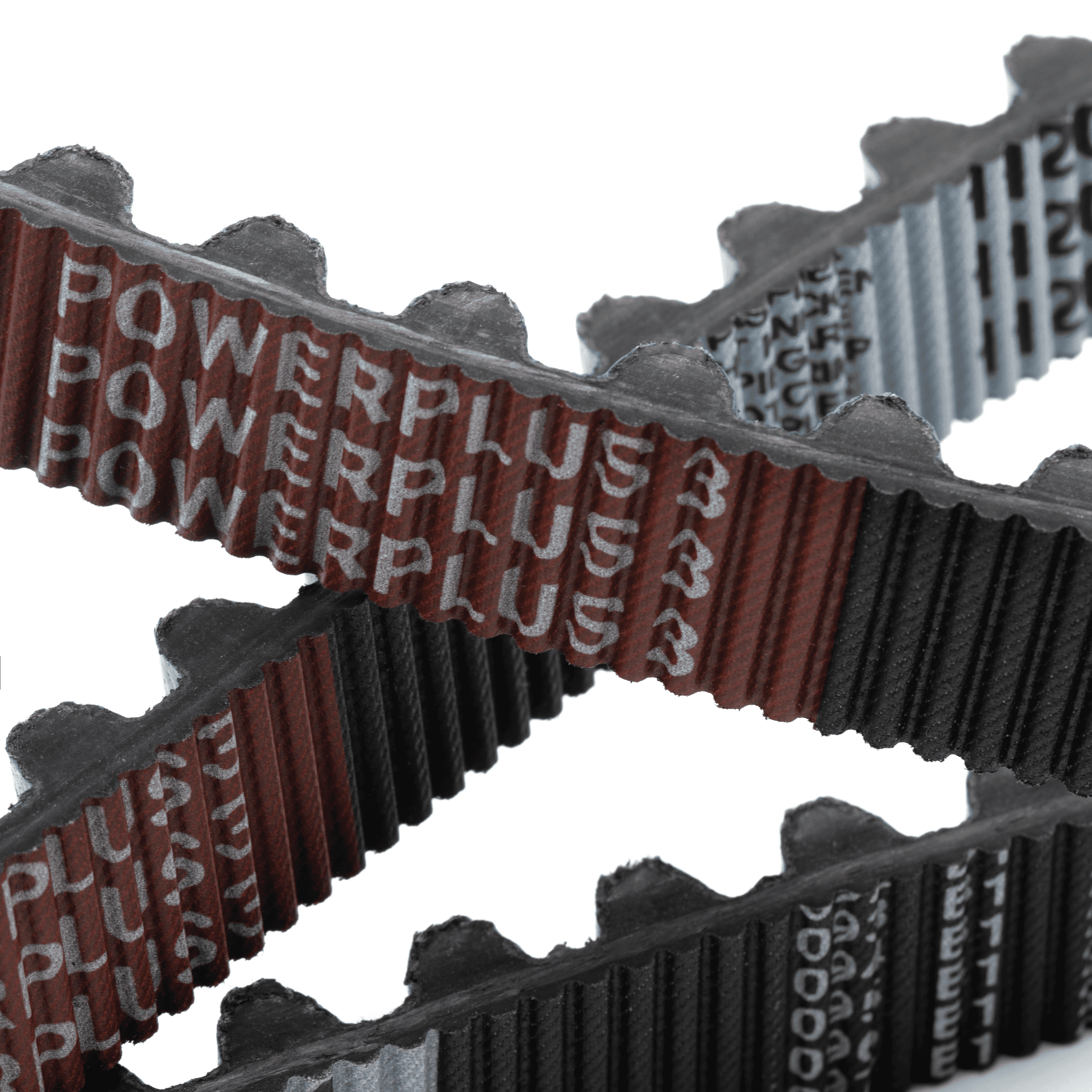

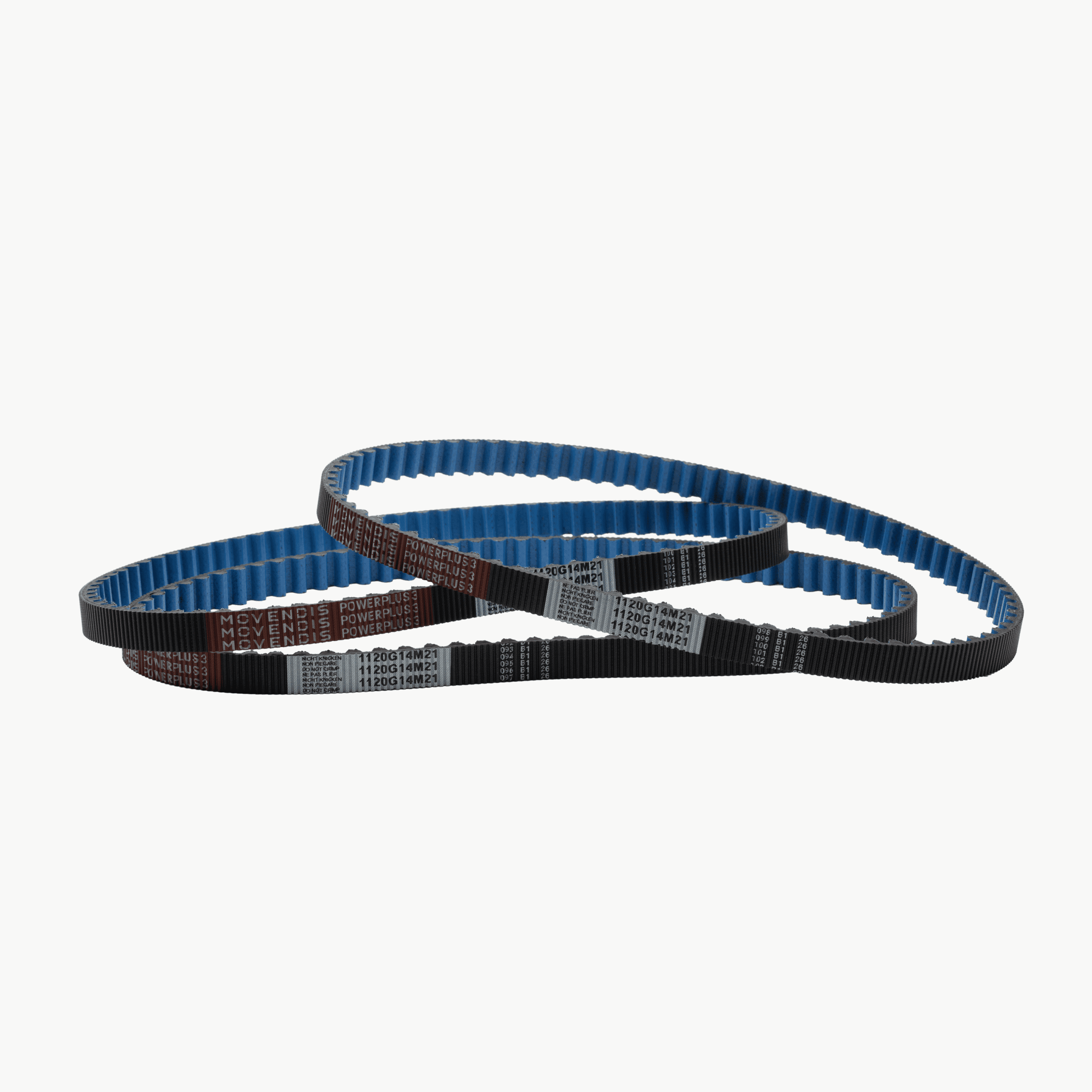

PowerPlus 3

The latest and most advanced innovation in synchronous belt transmission technology.
This is one of the highest power density belts on the market: MOVENDIS PowerPlus 3 represents the next generation in performance.
Engineered with an enhanced design and premium-grade materials, PowerPlus 3 delivers exceptional results for demanding industrial applications.
With an extended working temperature range from -40°C to +140°C, and short-term resistance up to +150°C, PowerPlus 3 offers unmatched stability in extreme conditions.
Thanks to its superior construction, PowerPlus 3 offers a compact drive solution: it allows for reduced belt width while maintaining or even increasing power capacity, thereby lowering system weight and reducing overhung load.
The high-performance HNBR (Hydrogenated Nitrile Butadiene Rubber) elastomer ensures outstanding resistance to abrasion, mineral oils, and flex fatigue, ensuring long-lasting operation.
Its 100% carbon cord guarantees dimensional stability, eliminating the need for re-tensioning and ensuring precise tooth meshing even under high static and dynamic loads.

With an advanced tooth facing fabric offering self-lubricating properties and anti-static performance, PowerPlus 3 also reduces friction, increases efficiency, and extends the life of both the belt and the sprockets.

Demonstrated advantages:
Extreme power density
Compact drive design with reduced belt width
High durability and torque resistance
Silent operation with reduced vibration
No stretch / Dimensional stability
No corrosion, no lubrication required
Maintenance-free / No re-tensioning
Wide temperature range (-40°C to +150°C peak)
Meets ISO 9563 antistatic requirements

STRUCTURE DETAILS:

Belt body:
Based on high-performance HNBR elastomer, the belt body is designed with unique cross-linking to reinforce tooth rigidity and durability.
It ensures high flex fatigue resistance, chemical stability, and excellent performance across a wide temperature range, up to +140°C.

Tensile cord:
Made of 100% carbon fiber, the cord structure offers exceptional dimensional stability, with no stretch under load.
The dual S & Z spiral design ensures neutral tracking and optimal meshing accuracy for quieter and smoother operation.

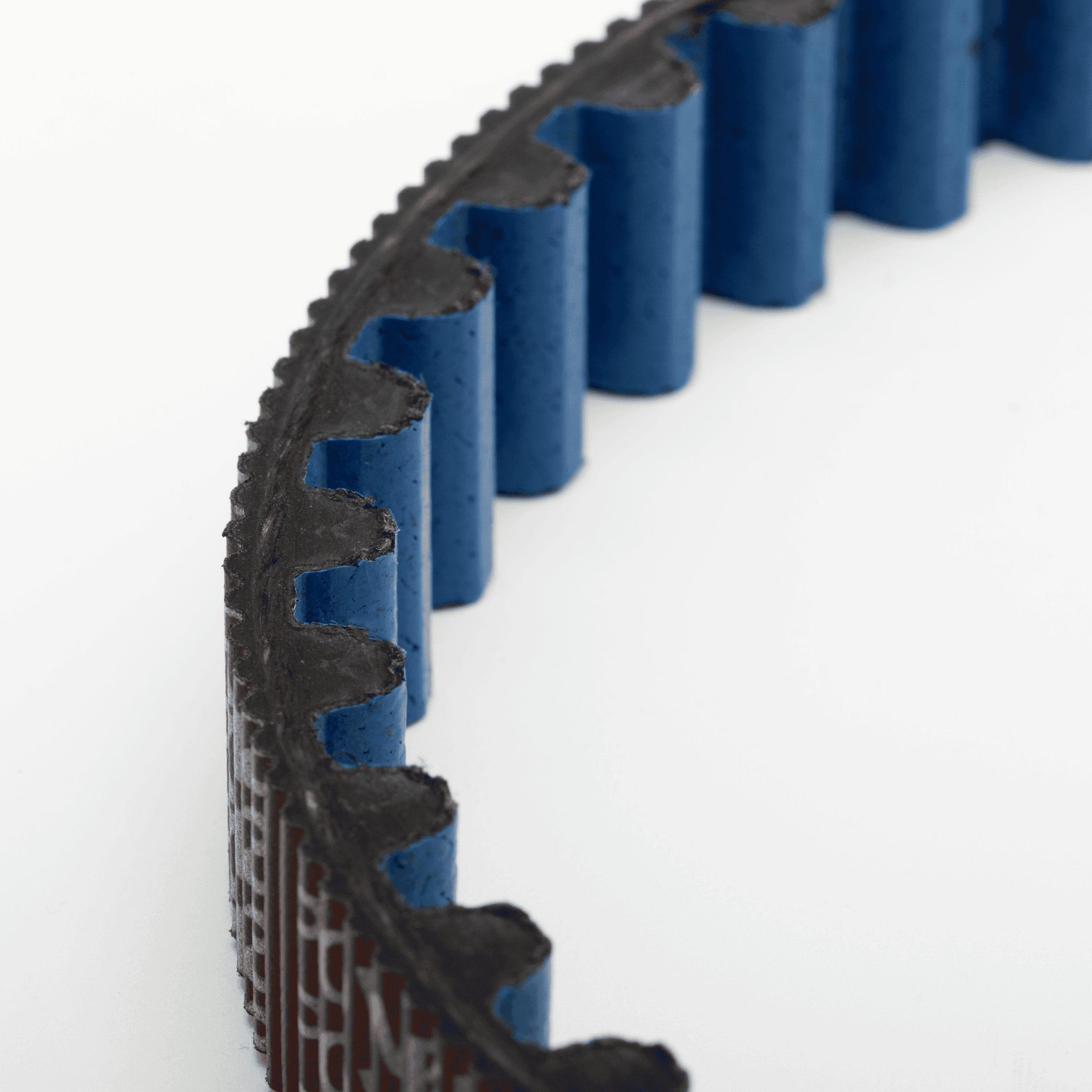

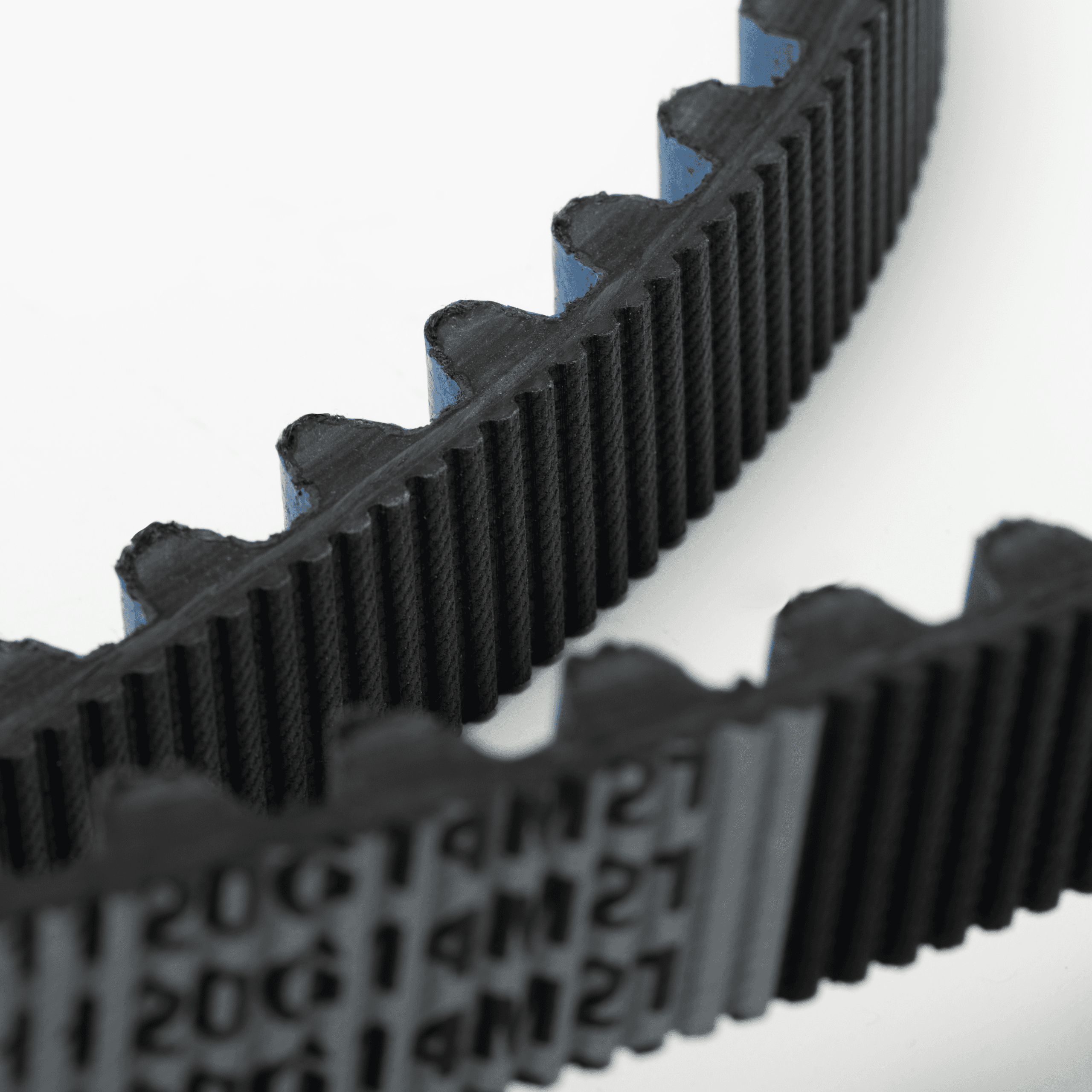

Tooth facing fabric:
A special high-strength fabric is bonded to the teeth to provide high shear resistance and torque transfer.
Its low-friction coating enhances sprocket life and efficiency, while also offering antistatic and self-lubricating properties.
